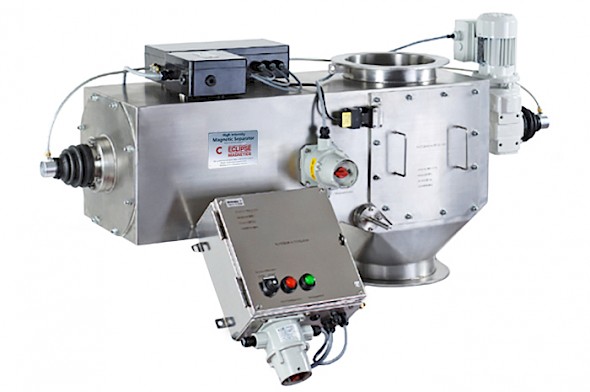

Auto-Rota Shuttle Magnetic Separator

Overview - Auto-Rota Shuttle Magnetic Separator

The Auto-Rota Shuttle magnetic separator combines the benefits of Auto-Shuttle and Rota-Grid unit in one. This unique design enables the screening of products prone to bridging or caking and enables 24/7 operation without the need to stop the production process.

The unit is supplied with a pre-programmed PLC that can either work independently or connected to the central control rooms system for remote activation or monitoring. The full system remains air-tight throughout normal operation, making it suitable for environments where ATEX equipment is required.

Applications
Suitable for dry and semi-dry powders and granulates
Can be installed in any vertical process line

Benefits
The system can attract all contamination and carry out an automatic self-cleaning without the need to stop the process
Ideal for 24/7 operations
Supplied with a pre-programmed PLC that can connect to the central control rooms system for remote activation or monitoring
Suitable for environments where ATEX equipment is required

Performance
Magnetic Performance: 7000, 9000 and 10000 Gauss
Performance Reading: On tube surface
Magnet Grade: N35 & N45 – Inspected and confirmed via hysterograph prior to use
Temperature: 23°F / +104°F (-5°C / +40°C)
Pressure: + / - 3 psi (+ / - 0.2 bar)

Construction
Magnetic Material: Rare Earth Neodymium Iron Boron - (NdFeb)
Housing: 316-grade stainless steel
Tubing: 316-grade stainless steel
Other Parts: 316-grade stainless steel
Sealing: Self adhered white foam
Surface Finish: Brushed internally / Polished externally to 1.2μm
