Alnico Pocket Magnets
For attracting, holding, clamping steel parts
Hover to zoom

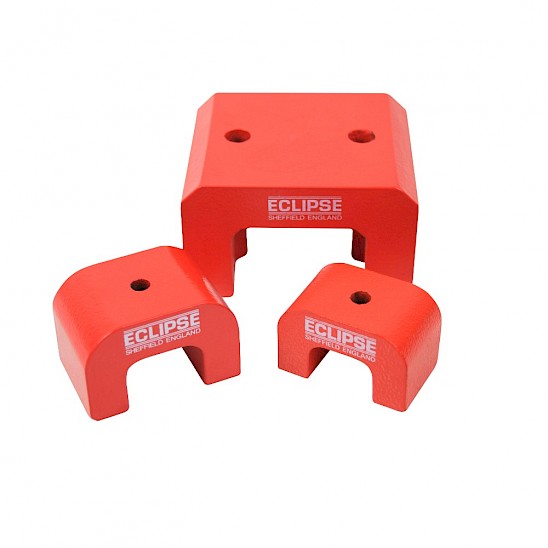

Alnico Power Magnets
For Holding & Clamping Applications
- For retrieval, holding, clamping, welding and soldering fixtures
- 1022°F (550°C) maximum operating temperature
- Alnico 5 magnet material
- Good corrosion resistance
Overview - Alnico Power Magnets
The Alnico horseshoe magnet is a classic Alnico magnet shape. Sometimes the Alnico horseshoe magnet is called a C-shape magnet and is also known as a pocket Alnico horseshoe magnet, a minor Alnico horseshoe magnet, and a power Alnico horseshoe magnet - they are all Alnico horseshoe magnets but have different sizes and performances .
The Alnico horseshoe magnets are capable of operating at temperatures of up to a maximum of 1022°F (550°C). The Alnico horseshoe magnets are supplied in natural (uncoated / unpainted) and red paint finishes. The Alnico horseshoe magnets can be offered in other dimensions and grades.
Technical Data
Model Variations
| Product Number | Length | Width | Height | Width of Gap | Hole Size | Hole Centres | Pull Force | Units Per Pack |
|---|---|---|---|---|---|---|---|---|
| 811 | 1.181" (30mm) | 0.787" (20mm) | 0.787" (20mm) | 0.590" (15mm) | 0.197" (5mm) | n/a | 10lbs (4.5kg) | 5 |
| 812 | 1.575" (40mm) | 0.984" (25mm) | 0.984" (25mm) | 0.787" (20mm) | 0.197" (5mm) | n/a | 20lbs (9kg) | 5 |
| 813 | 1.771" (45mm) | 1.181" (30mm) | 1.181" (30mm) | 0.906" (23mm) | 0.197" (5mm) | n/a | 26lbs (12kg) | 2 |
| 814 | 2.283" (57mm) | 1.594" (41mm) | 1.377 (35mm) | 1.094" (28mm) | 2 X 0.311" (2 X 7.9mm) | 1.260" (32mm) | 52" (24kg) | 1 |
| 815 | 2.756" (70mm) | 2.251" (57mm) | 1.625" (41mm) | 1.342" (34mm) | 2 X 0.311" (2 X 7.9mm) | 1.496" (38mm) | 82lbs (37kg) | 1 |
| 816 | 3.125" (79mm) | 3.250" (83mm) | 2.125" (54mm) | 1.515" (39mm) | 2 X 0.374" (2 X 9.5mm) | 1.693" (43mm) | 103lbs (47kg) | 1 |
| 817 | 2.374" (60mm) | 2.440" (62mm) | 1.575" (40mm) | 1.250" (32mm) | n/a | n/a | 77lbs (35kg) | 1 |
| 818 | 3.125" (79mm) | 3.374" (86mm) | 2.125" (54mm) | 1.874" (48mm) | n/a | n/a | 132lbs (60kg) | 1 |
