Ceramic Round Base Magnet
Ceramic Round Base Magnet
Ceramic Pot Magnet
Ideal for retail, display or industrial holding or mounting applications

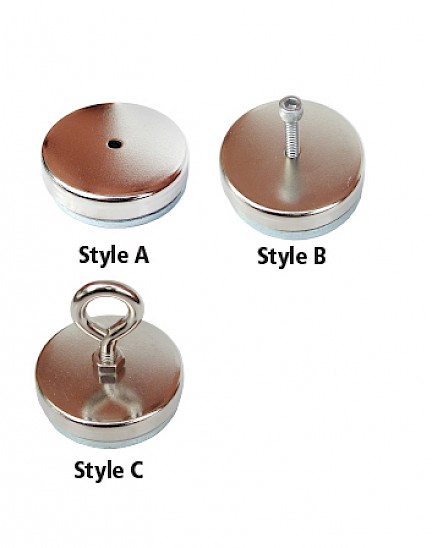

- Style A: Nickel Plated Pot
- Style B: Shallow Pot with Bolt
- Style C: Shallow Pot with Loop
Overview - Ceramic Pot Magnet
Ceramic Pot Magnet
- Also see our range of Ceramic Round Base Magnets and Neodymium Pot Magnets
Technical Data
Model Variations
| Product Number | Diameter | Thickness | Pull Force | Style |
|---|---|---|---|---|
| E680 | 1.25" (31.8mm) | 0.19" (4.8mm) | 4lbs (2kg) | A |
| E681 | 2.03" (51.6mm) | 0.31" (7.9mm) | 38lbs (17kg) | A |
| E682 | 2.63" (66.8mm) | 0.38" (9.7mm) | 82lbs (37kg) | A |
| E683 | 3.25" (82.6mm) | 0.44" (11.2mm) | 95lbs (43kg) | A |
| E2135 | 4.90" (124.0mm) | 0.50" (13.0mm) | 200lbs (90kg) | A |
| E692 | 1.20" (30.6mm) | 1.19" (30.2mm) | 4lbs (2kg) | B |
| E693 | 2.03" (51.6mm) | 1.81" (46mm) | 38lbs (17kg) | B |
| E694 | 2.25" (57.2mm) | 1.19" (30.2mm) | 10lbs (5kg) | B |
| E695 | 2.63" (66.7mm) | 1.94" (50.8mm) | 82lbs (37kg) | B |
| E696 | 3.81" (96.8mm) | 1.88" (47.6mm) | 95lbs (43kg) | B |
| E697 | 2.62" (66.5mm) | 1.94" (50.8mm) | 82lbs (37kg) | C |
| E698 | 3.25" (82.6mm) | 1.19" (30.2mm) | 96lbs (43kg) | C |
