Ceramic Shallow Pot with Countersunk Hole
Ideal for holding applications and securing with a screw
- For clamping and holding applications
- 248°F (120°C) maximum operating temperature
- Excellent resistance to corrosion
- Mild steel pot with zinc plated body
Overview - Ceramic Shallow Pot with Countersunk Hole

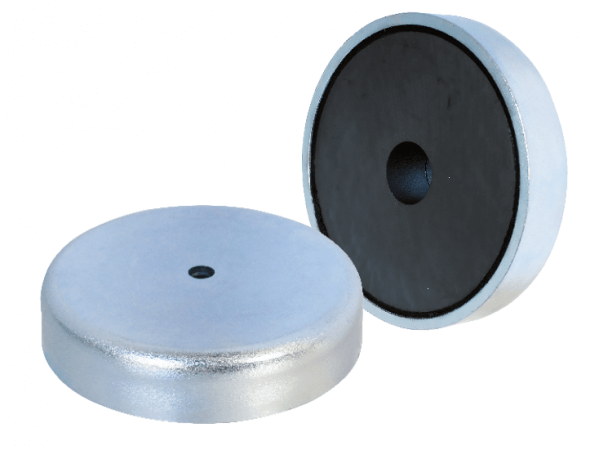

Ceramic Shallow Pot with Countersunk Hole
Countersunk Mounting Pot Magnet / Countersunk Shallow Pot Magnet
The countersunk mounting pot magnet is also known as a shallow pot magnet (a term often used with ceramic material as the inner magnet but other magnet materials are used). The countersunk mounting pot magnet / shallow pot magnet is a ferromagnetic steel cup into which is inserted a countersunk ring magnet. There is a hole all the way through which allows a screw head to be inserted into the countersunk mounting and then screw the magnet to any material of your choice to give a good mechanical hold. Take care not to over tighten the screw to prevent breaking the magnet material (which is brittle in nature).
Pot Magnets for Clamping and Holding Applications
The countersunk mounting pot magnet / shallow pot magnet is a very popular pot magnet, ideal for clamping and holding applications. It is designed to clamp directly onto ferromagnetic surfaces such as mild steel. Ceramic countersunk mounting pot magnets / ceramic shallow pot magnets have a maximum operating temperature of up to +248°F (+120°C) and are available in plated finish.
Technical Data
Model Variations
| Product Number | Diameter | Thickness | Pull Force | Hole Size | Screw Head | Units Per Pack |
|---|---|---|---|---|---|---|
| E876 | 0.984" (25mm) | 0.276" (7mm) | 9.9lbs (4.5kg) | 0.217" (5.5mm) | M5 | 10 |
| E877 | 1.260" (32mm) | 0.276" (7mm) | 22lbs (10kg) | 0.217" (5.5mm) | M5 | 10 |
| E878 | 1.575" (40mm) | 0.315" (8mm) | 44.1lbs (20kg) | 0.217" (5.5mm) | M5 | 5 |
