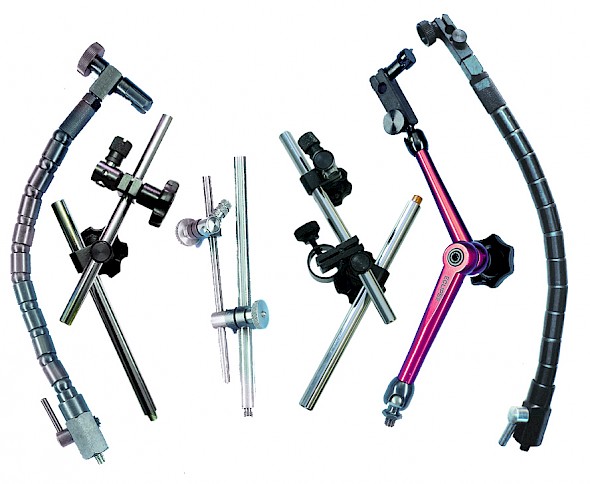

Fitment Sets for Magnetic Bases
Ideal for mounting measuring equipment
- Rigid, flexible and heavy duty options available
- Bases are easy to attach and secure
- Available with fine adjustment crossbar for precise measurement
- Fitments complete with screw thread for attaching to a magnetic base or direct to machine
- Also available supplied with a magnetic base
Technical Data
Model Variations
Product Number | Pillar Height | Pillar Diameter | Crossbar Length | Crossbar Diameter | Screw Fixing |
---|---|---|---|---|---|
RP72CP | 7.28" (185mm) | 0.492" (12.5mm) | 5.90" (150mm) | 0.250" (6.3mm) | M8 |
RP991BL | 6.89" (175mm) | 0.472" (12mm) | 6.50" (165mm) | 0.394" (10mm) | M8 |
RP995BL | 6.89" (175mm) | 0.472" (12mm) | 6.50" (165mm) | 0.394" (10mm) | M8 |
Maximum Extension Height | Screw Fixing | ||||

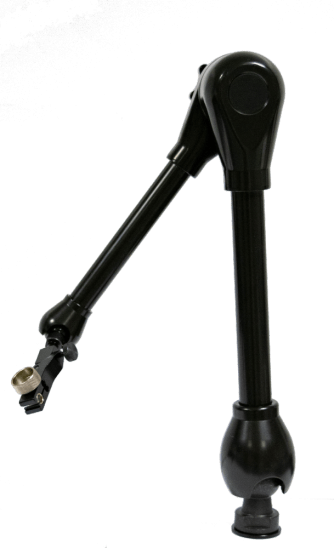

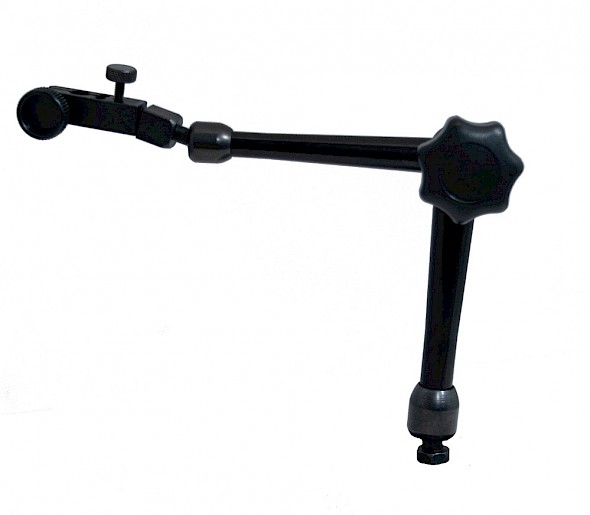

RP999 | 11.6" (295mm) | M8 |
