90° Switchable Fixed Welding Clamps
Easy, quick set up ideal for welding and assembly

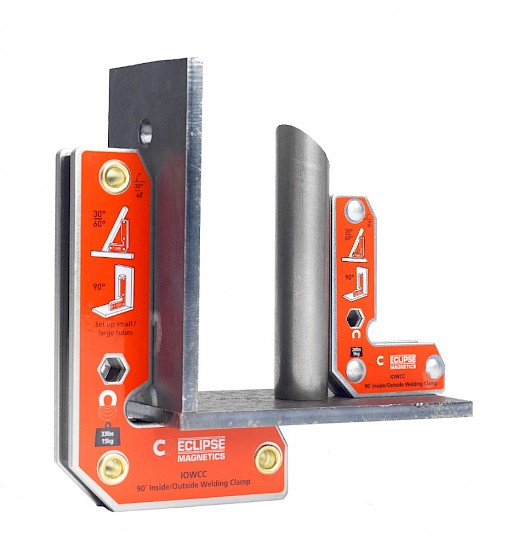

Inside and Outside Welding Clamps

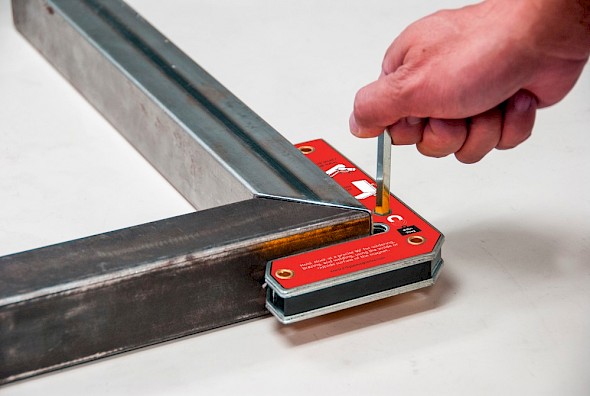

Ideal for holding and positioning steel in welding or assembly
- Ideal for use with sheet metal, round pipe, square , angled or flat stock
- Two sided independent magnetic fields can clamp inside and outside

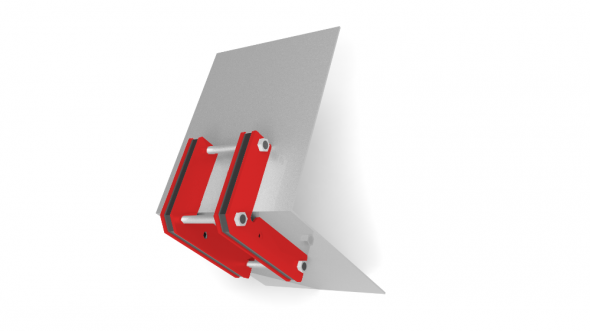

- Comes with mounting holes for linking two units together
- Hex hole allows breakaway leverage
Overview - Inside and Outside Welding Clamps
Inside and Outside Welding Clamps

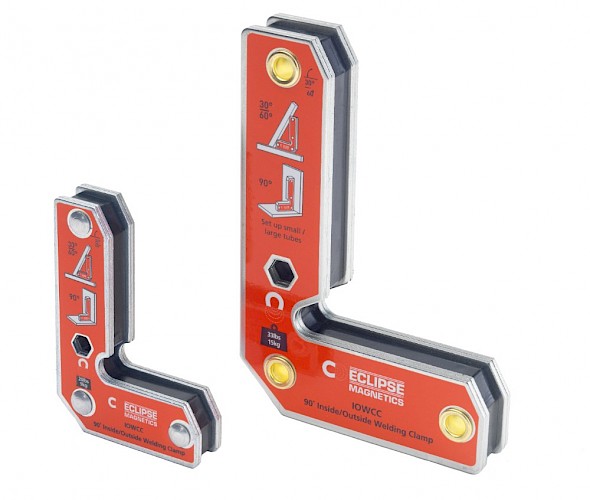

Model Variations
| Product Number | Angles | Height | Width | Thickness | Pull Force |
|---|---|---|---|---|---|
| IOWCC | 30 ̊, 60 ̊, 90 ̊ | 3" (75.5mm) | 2" (52mm) | 0.5" (14mm) | 19.8lbs (9kg) |
| IOWCC* | 30 ̊, 60 ̊, 90 ̊ | 5" (125mm) | 3.3" (85mm) | 0.7" (18mm) | 33.1lbs (15kg) |
| IOWCL | 30 ̊, 60 ̊, 90 ̊ | 6.5" (165mm) | 4.3" (110mm) | 0.8" (20mm) | 39.7lbs (18kg) |
