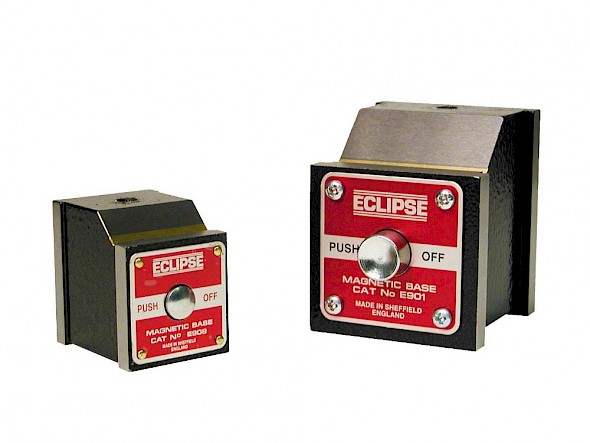

Magnetic Bases Push Button

Push button activated magnetic base for mounting components

Push button switched magnetic bases to hold Eclipse Magnetics fitments for inspecting workpieces.
Can be located on any ferrous surface to provide rigid support
Magnetic on 4 sides
Can clamp onto curved and flat surfaces
A range of fitments also available
Part numbers E900WF and E901WF

Download Precision Range Brochure

Get a quote

Technical Data

Download Precision Range Brochure

Model Variations

Product Number	Length	Height	Width	Hole	Hold	Weight
E900WF	1.890" (48mm)	2.047" (52mm)	1.575" (40mm)	M8	66lbs (30kg)	1.10lbs (0.5kg)
E901WF	2.519" (64mm)	3.000" (76mm)	2.519" (64mm)	M8	176lbs (80kg)	3.747lbs (1.7kg)
