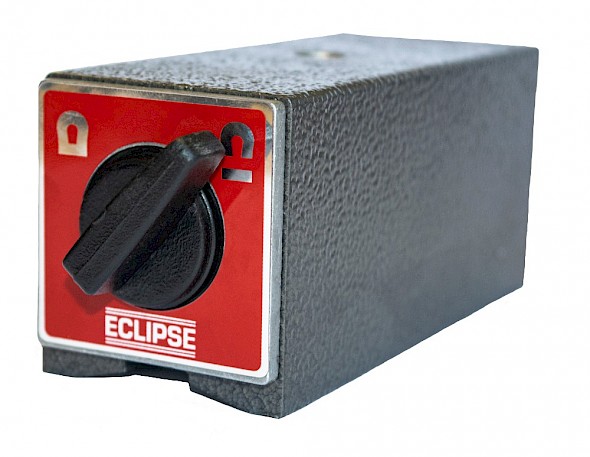

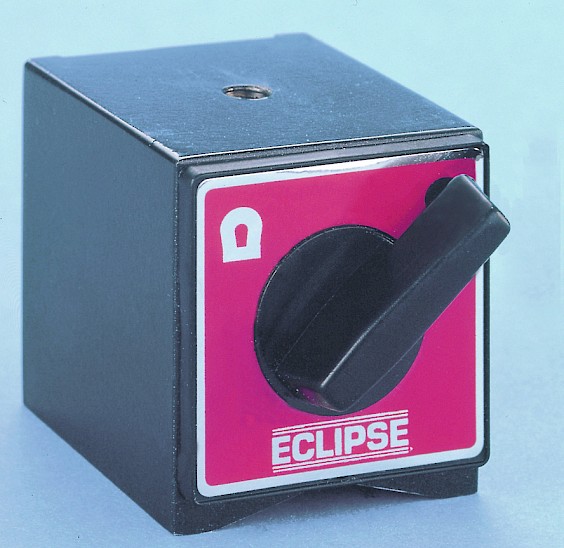

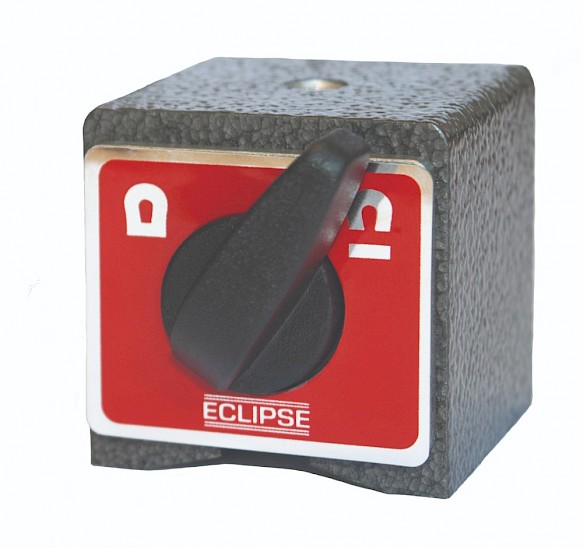

Magnetic Bases with Toggle Switches

Ideal for mounting fitments to hold measuring or inspection equipment

Toggle switched magnetic bases to hold Eclipse Magnetics fitments for inspecting workpieces
Can be located on any ferrous surface to provide rigid support
Magnetic on 3 sides
Can clamp onto curved and flat surfaces
A range of fitments also available

Download Precision Range Brochure

Get a quote

Technical Data

Download Precision Range Brochure

Model Variations

Product Number	Product #NA	Length	Height	Width	Hole	Hold	Weight
E905WF	M15885	2.559" (65mm)	2.165" (55mm)	1.969" (50mm)	M8	176lbs (80kg)	2.116lbs (0.960kg)
E905WF/100	M19290	2.953" (75mm)	2.165" (55mm)	1.969" (50mm)	M8	220lbs (100kg)	2.645lbs (1.200kg)
