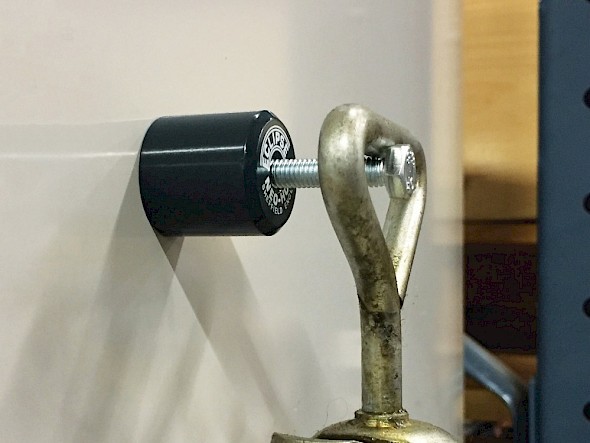

Neodymium Deep Pot Bi-Pole Magnets-Threaded Hole
Strong pot magnet with threaded hole for attaching components
- Aluminum pot with mild steel pole pieces
- N35 grade nickel plated magnet material
- 176°F (80°C) max operating temperature
- Ideal for clamping applications
Overview - Neodymium Deep Pot Bi-Pole Magnets-Threaded Hole
Neodymium Bi-Pole Deep Pot Magnet / Twin Pole Blind Ended Deep Pot Magnet
The bi-pole deep pot magnet and twin pole blind ended deep pot magnet are variants of a similar design theme. The outer casing is Aluminum or Brass (i.e. non-magnetic). There are two mild steel pole pieces (circular segment shaped) with a magnet between the mild steel poles. Bi-pole and twin pole are interchangeable names for this style of pot magnet.
The deep pot versions of the bi-pole or twin pole pot magnets either have a threaded hole at the back or they are blind-ended (no threaded hole or any other form of fixing). Press fitment is usually performed on the blind ended versions. The Neodymium (Rare Earth) or NdFeB bi-pole deep pot magnet and NdFeB twin pole blind ended deep pot magnet versions are rated to a maximum operating temperature of +176°F (+80°C).
Technical Data
Model Variations
| Product Number | Diameter | Height | Thread Size | Pull Force | Units Per Pack |
|---|---|---|---|---|---|
| NH025 | 0.500" (12.7mm) | 0.472" (12mm) | M5 | 5.5lbs (2.5kg) | 10 |
| NH065 | 0.630" (16mm) | 0.630" (16mm) | M6 | 17.6lbs (8kg) | 10 |
| NH130 | 0.874" (22.2mm) | 0.787" (20mm) | M6 | 35.3" (16kg) | 5 |
| NH240 | 1.000" (25.4mm) | 0.984" (25mm) | M6 | 55.1lbs (25kg) | 5 |
