Automag Skid Magnetic Filter

Automated clean filter, flow rates up to 10,000 litres per min.

  • Ideal for high-volume 24/7 machine tool or wash system processes
  • Includes integral waste/fluid reclaim unit
  • Reduces expenditure on media filters such as bags, paper or cartridges
  • Fully automated cleaning and fluid recovery system
  • Environmentally friendly filter - reduces waste disposal
  • Reduces lubricants, oil, and coolant consumption

Overview - Automag Skid Magnetic Filter

Ideal for 24/7 Precision Machining

Self-Contained Filtration and Fluid Recovery System

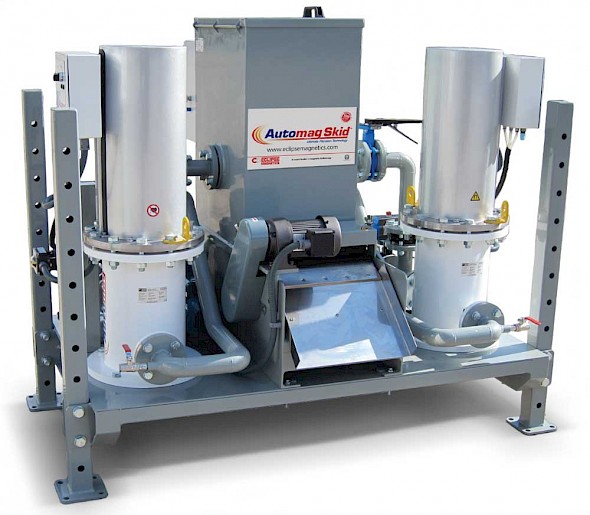

The Automag Skid is a fully automated industrial fluid filtration unit or coolant separator, which minimises fluid loss during cleaning and is ideal for 24/7 high volume single or multi-cell CNC machining or wash system applications. The combination of  high-performance magnetic circuits and a patented dual flow system ensures almost 100% of ferrous waste is  filtered  leaving clean cutting, grinding fluids or wash solutions to return to process .

The unit is fully automated and PLC compatible. Other than initial settings, no user intervention required .  The integral fluid recovery system ensures minimal fluid wastage and as an added benefit the ferrous partcles are reclaimed and can be recycled. Read about some of our successful installations, including in the automotive industry, steel processing, bearing manufacture and in engineering applications.

Investment in Automag Skid  magnetic filtration systems often has a rapid payback in consumable filter savings, machine downtime savings, reduced expendiure on coolants, oils etc and an improved finished product quality . In addition, they make a significant contribution in reducing machine tool associated waste. Magnetic filtration is an ideal choice for ISO14001 compliance.

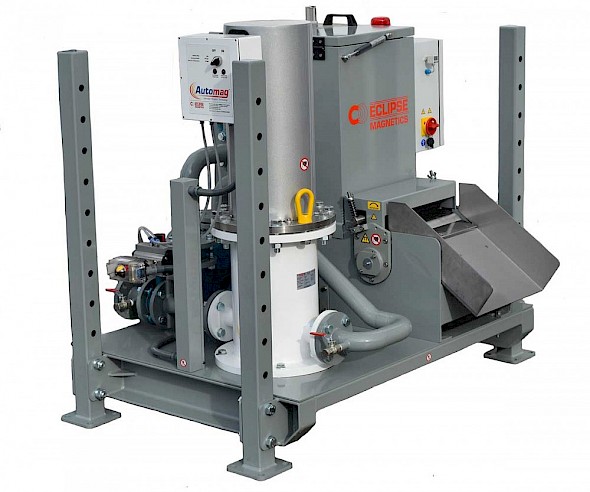

Automag Skid is an industrial filter which can be suppllied with a single filtration unit or multiiple filtration units depending on the size an volume requirements of  the application. It can be used for in-line filtration or as an off-line fluid cleaning system. See how Automag Skid saved £1000 per week.

How Automag Works

Fluid passes through the dual chambers of the Automag magnetic filter where steel contamination collects on the magnetic rods. On a preset timing the ferrous particles are released during a "purge" cycle.

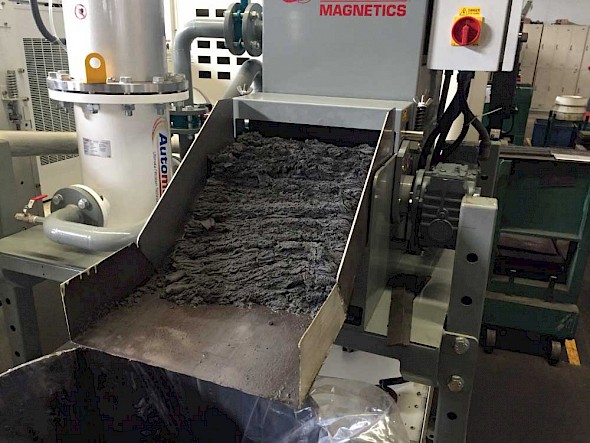

The filters output is briefly diverted to a purge tank where dirty fluid passes through a  magnetic reclaim which separates out ferrous contamination in a semi-dry form and returns clean fluid back to process. Thereby minimising fluid loss and maximising ferrous particle extraction.

Services Available:

  • Design and manufacture of bespoke magnetic filtration systems
  • Maintenance and servicing of magnetic filtration systems
  • Testing & validation services for magnetic filter equipment
  • Certification including UKCA, CE, and ATEX



For high volume wash station applications see Automag AM32
