Baking Tray Handling System

Pneumatically activated systems for fast and efficient tray or bread tin handling in bakeries

  • Ideal solution for efficient automated tray storage systems
  • Available for handling single tins or up to 16 straps in a single lift

Overview - Baking Tray Handling System

Pneumatically activated systems for fast and efficient tray or bread tin handling in bakeries.

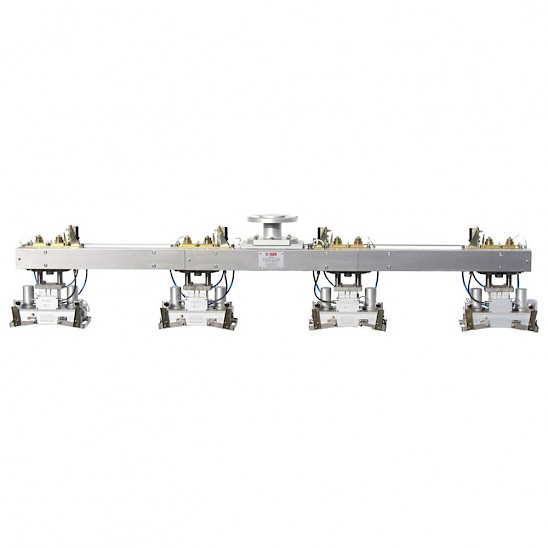

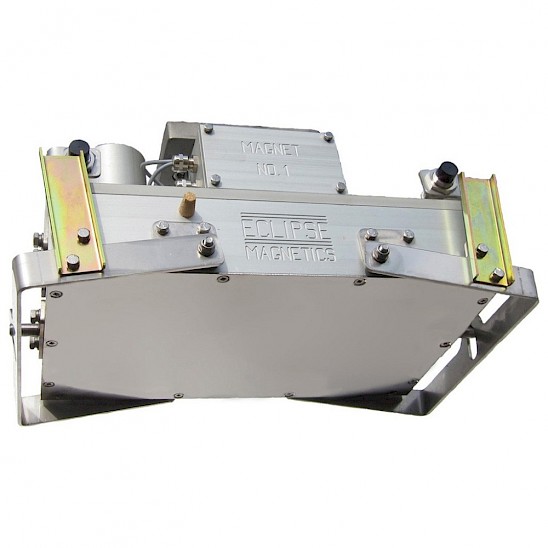

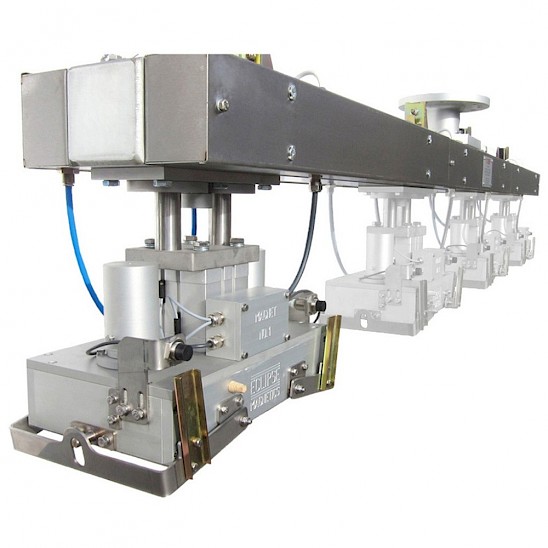

Baking tray or bread tin loading and unloading from conveyors is arduous and time consuming process especially when done manually. Our pneumatically activated magnetic handling system is the ideal solution for efficient automated tray storage systems. They are widely used, worldwide, to lift different bread tins, straps, bun trays and lids. Systems are available for handling single tins or up to 16 straps in a single lift. It allows sets of straps to be handled, off loaded and stacked into secure areas or placed onto the in feed conveyor.

Advantages of using Magnetic Handling systems v Grippers or Suction Cups

  • One magnet can be used for a range of trays or straps
  • No adjustment required
  • Positioning is not critical - once correct size is specified
  • Failsafe operation - load is held even if air supply fails
  • No damage to tin surface
  • No contact with tin or tray cavity
  • No requirement to lift on solid surface
  • No loose parts to fall in cavities and contaminate product
  • Durability - the magnets do not suffer wear or premature failure

To protect your process from contamination see our Metal Separation & Detection.

For lifting loads up to 2000Kg see Ultralift Plus.
