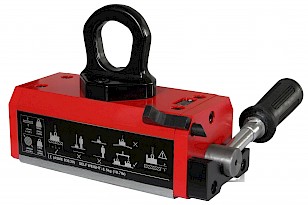

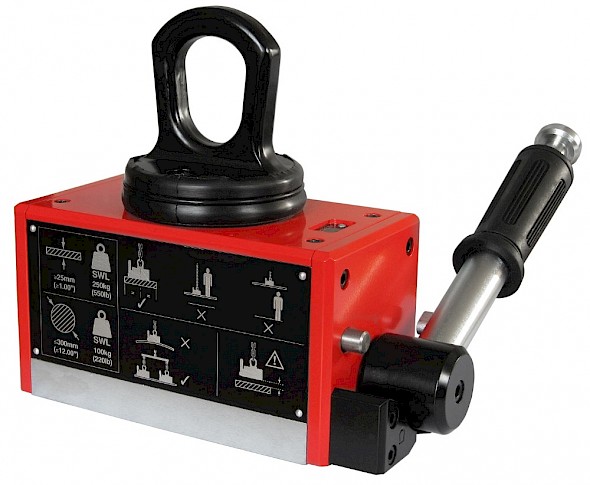

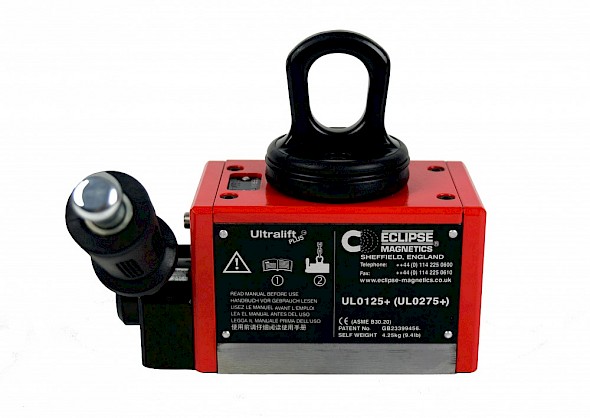

Ultralift Plus

A safe and efficient way to move ferrous loads

  • Lifting eye sensor - when under tension the lifting eye automatically locks the handle ensuring that the load cannot be released
  • Safety shim - the safety shim enables pre-testing of the load thereby ensuring a 3:1 guaranteed safety factor
  • Safety button - locks the handle in place preventing the accidental release of the load

Overview - Ultralift Plus

A safe and efficient way to move ferrous loads

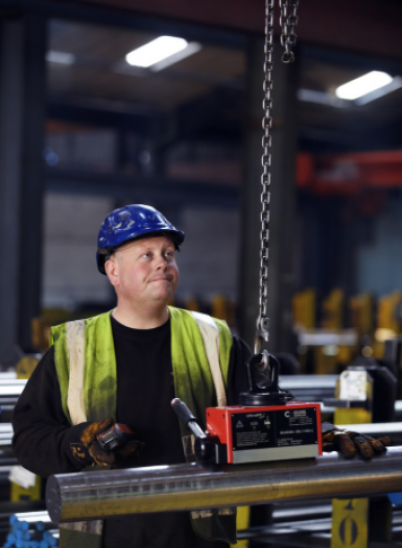

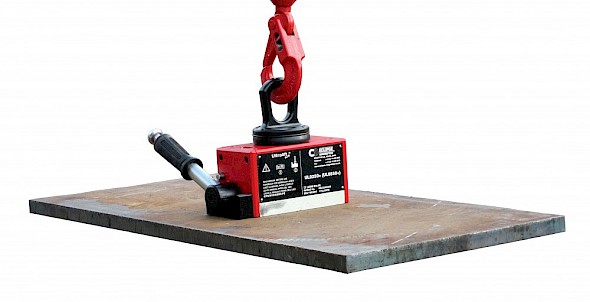

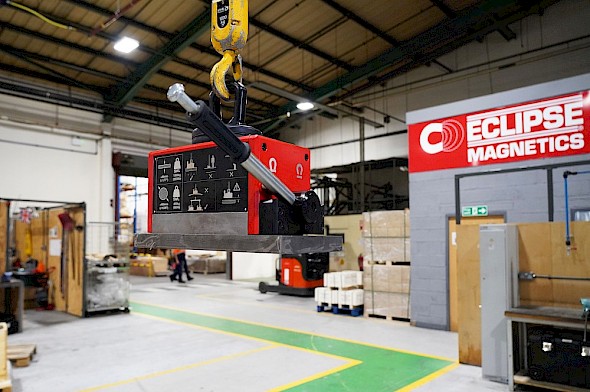

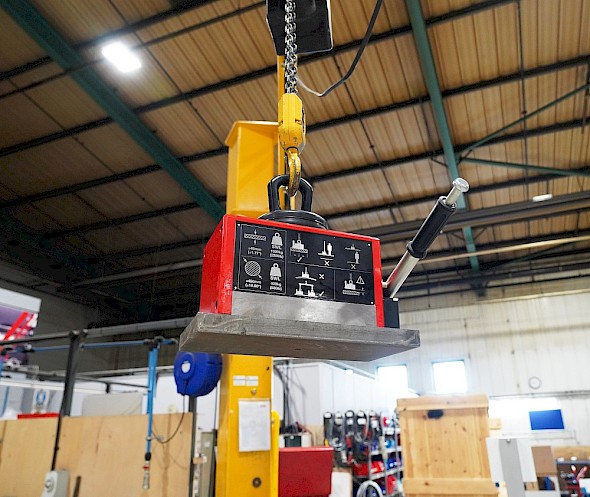

The premier Ultralift Plus lifting magnet provides fast and efficient lifting for a wide range of loads in the factory or workshop. It's capable of lifting both round and flat section loads.

Ultralift Plus uses high intensity neodymium 'rare earth' magnet material for the highest power to weight ratio. The material is permanently magnetic, and switching the Ultralift Plus on and off is manual, so no power is required and it has no operating costs. You can use it almost anywhere - just hook it to your hoist or crane. Ultralift Plus is backed by a 3 year warranty.

Ultralift Plus has a range of built in safety mechanisms:

• Lifting eye sensor - when under tension the lifting eye automatically locks the handle ensuring that the load cannot be released

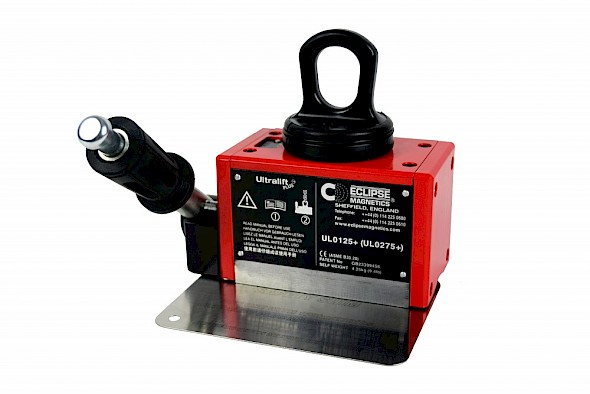

• Safety shim - the safety shim enables pre-testing of the load thereby ensuring a 3:1 guaranteed safety factor
• Safety button - locks the handle in place preventing the accidental release of the load

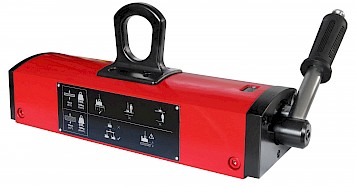

For lifting thin plate see Ultralift TP.

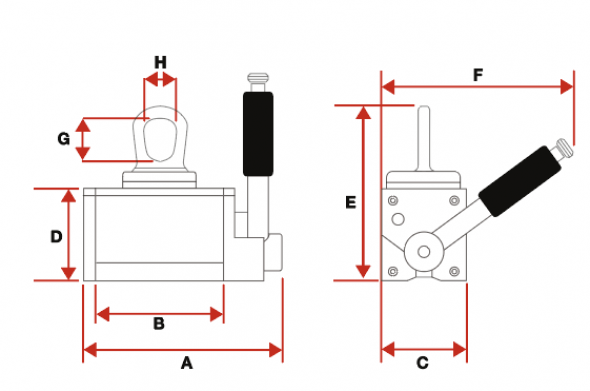

Model Variations

Product NumberSelf Weight (kg)Material Length Max. (mm)Flat Section SWL (kg)Flat Section Thickness Min (mm)Round Section Dia. Max (mm)Round Section SWL (kg)
UL0125+415001252020050
UL0250+11150025025100300
UL0500+27200050030200400
UL01000+633000100045400450
UL02000+1573000200055800600
