Housed Underflow Magnetic Separator

Extracts ferrous contamination on inclined chutes

Ideal for arduous operating conditions
ATEX approved versions available
Suitable for dry, semi-dry powders and granulates
Easy to clean manually
Can be fitted into any angled pipe or chute section

Download datasheet

Get a quote

Overview - Housed Underflow Magnetic Separator

High-intensity separator suitable for installation into vertical, horizontal and inclined gravity feed chutes

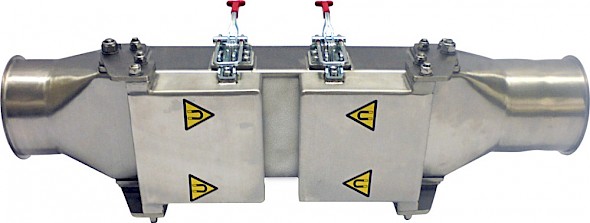

Our high-intensity underflow magnet has been designed to operate in arduous conditions and where contamination size is relatively large e.g. nuts, bolts etc. The unit incorporates two magnetic poles which generate high intensity magnetic fields. The unit is secured to the chute by a hinge and toggle clamp arrangement which ensure even pressure is generated around the seal to prevent any product leakage.

The housed underflow magnet can be incorporated into any form of angled pipe or chute section. A common installation location is raw material inlet points for products such as grain, rice, corn, bran and animal feed etc.

Applications
Suitable for dry and semi-dry, semi dry powders, granulates and lumps etc.
Can be installed at all angled chute sections

Benefits
Easy to clean
Maintains full flow
Reduces ‘spark’ risk
Removes ‘tramp’ sized contaminants
Meets audit requirements
Rare Earth deep magnetic field

Performance
Magnetic Performance: 3,500 Gauss
Performance Reading: on magnetic front face
Magnet Grade: N35 – Inspected and confirmed prior to use
Temperature: -20°C / +90°C
Depth of Field: 90mm

Construction
Magnetic Material: Rare Earth Neodymium Iron Boron - (NdFeB)
Housing: 316 grade stainless steel
Other Parts: 316 grade stainless steel
Hinge: 304 grade stainless steel
Toggle Clamps: Zinc plated mild steel
Surface Finish: Brushed to 2.4μm
