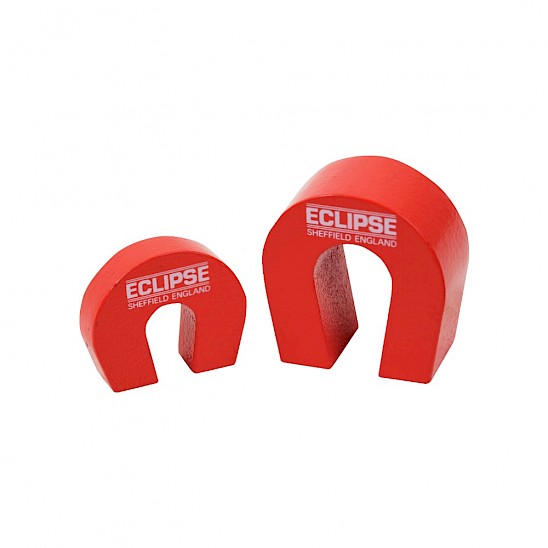

Alnico Power Magnets / Alnico Horseshoe Magnet
For Holding & Clamping Applications
Hello...
Would you like to visit the Eclipse Magnetics US site to view all relevant content for your location?
For attracting, holding, clamping steel parts
Product Number | Height (mm) | Length (mm) | Pull force (kg) | Units per pack | Weight per pair (kg) | Width (mm) | Width of gap (mm) |
---|---|---|---|---|---|---|---|
E802 | 25.4 | 28.5 | 2.4 | 10 | 0.03 | 7.6 | 6.3 |
E803 | 35 | 33.3 | 4 | 5 | 0.09 | 15.9 | 7.9 |
