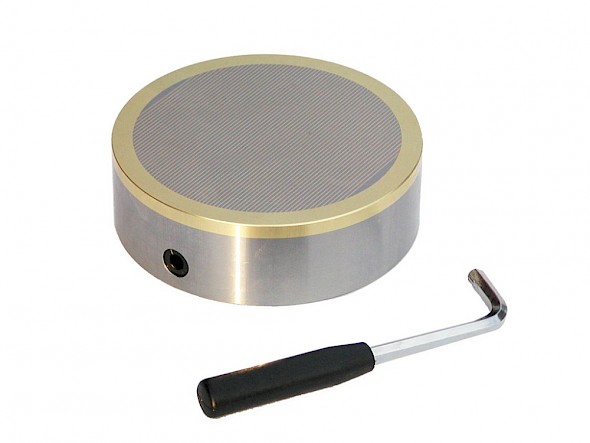

Circular Standard Magnetic Chuck

Fast, accurate clamping for grinding and machining components

  • All metal top plate - high accuracy and long lifespan
  • High corrosion resistance - resists damage from coolants
  • Chrome plated side and end stops - accurate location
  • Base plate - for fixing to a machine bed (clamps supplied)
  • Simple on-off switching - removable operating handle
  • Failsafe permanent magnetic technology
  • For milling applications see <a href="{{store direct_url="product-range/workholding/sm2618-supermill.html"}}">Supermill</a>.
  • </div>

Overview - Circular Standard Magnetic Chuck

Precision in grinding and turning

Cost-effective permanent magnetic chucks for grinding and turning applications. Our Standard range chucks provide high performance at an extremely competitive price. Available in a choice of 2 pole formats, the standard chucks are manufactured from steel and brass with neodymium magnets located in the top plate to enhance performance.

Pole spacing options Fine pole - ideal for thin and small workpieces from 3mm to 0.7mm thick Standard pole - ideal for clamping thicker workpieces >3mm

For milling applications see Supermill

Model Variations

Product NumberEFGPoleA (in)A (mm)B (in)B (mm)C (in)C (mm)D (in)D (mm)E (in)E (mm)F (in)F (mm)G (in)G (mm)Weight (lb)
ECSP10076.2M6N/ASTD Pole3.941001.9650250.80.256.35376.2M6M6n/aN/A13.2
ECSP12576.2M6101.6STD Pole4.921251.9650250.80.256.35376.2M6M64101.620.7
ECSP195101.6M10139.7STD Pole7.681951.9650376.20.256.354101.6M10M105.5139.739.7
ECSP160101.6M10139.7STD Pole6.31601.9650376.20.256.354101.6M10M105.5139.729.8
ECSP255114.3M10190.5STD Pole102551.96503.3785.730.256.354.5114.3M10M107.5190.549.6
ECSP310184.15M12254STD Pole12.23101.96506152.40.256.357.25184.15M12M121025470.5
ECFP10076.2M6N/AFine Pole3.941001.9650250.80.256.35376.2M6M6n/aN/A13.2
ECSP350196.85M12N/AFine Pole13.773501.96507.75196.850.256.359.25196.85M12M12n/aN/A88.2
ECFP12576.2M6101.6Fine Pole4.921251.9650250.80.256.35376.2M6M64101.620.7
ECFP160101.6M10139.7Fine Pole6.31601.9650376.20.256.354101.6M10M105.5139.729.8
ECFP255114.3M10190.5Fine Pole102551.96503.3785.730.256.354.5114.3M10M107.5190.549.6
ECFP310184.15M12254Fine Pole12.23101.96506152.40.256.357.25184.15M12M121025470.5
ECFP195101.6M10139.7Fine Pole7.681951.9650376.20.256.354101.6M10M105.5139.739.7
ECFP350Fine Pole13.771.967.750.259.25M12n/a88.2
