Ferrite (Ceramic) Channel Magnets

Ideal for holding and fixing applications such as door latches

120 maximum operating temperature
Excellent resistance to corrosion
Mild steel pot with red painted body
C profile channel

For high strength see Neodymium Channel Magnets

Overview - Ferrite (Ceramic) Channel Magnets

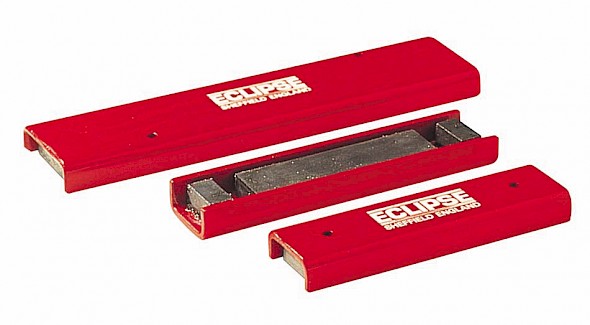

These are C -profile ferromagnetic mild steel channels within which are placed magnets. They have a rectangular shape and work in a similar way to pot magnets.

The ferrite (ceramic) magnet versions can operate at temperatures up to a maximum of +120 degrees C. The channel magnets have two 4.2mm diameter fixing holes in the mild steel back plate section to allow them to be screwed onto an assembly.

Want to discuss this in more detail? Get in touch

Model Variations

Product Number	Length (mm)	Width (mm)	Height (mm)	Plain fixing holes	Hole centres	Weight (kg)	Pull force (kg)	Units per pack
E898/1	115	30	13	4.2	80	0.25	8	5
E898/2	130	30	13	4.2	90	0.3	14	5
E899	190	43	13	4.2	110	0.55	48	2

Related Products

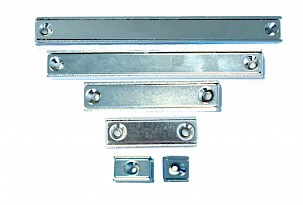

Neodymium NdFeB Channel Magnet
