Home /  Stock Magnets & Tools / Inside and Outside Welding Clamps
Inside and Outside Welding Clamps

Hover to zoom

Inside and Outside Welding Clamps examples

Hover to zoom

Inside and Outside Welding Clamps in use

Hover to zoom

Inside and Outside Welding Clamps applied

Hover to zoom

Inside and Outside Welding Clamps

Ideal for clamping, holding and positioning steel in welding or assembly

  • Ideal for use with sheet metal, round pipe, square , angled or flat stock
  • Two sided independent magnetic fields can clamp inside and outside

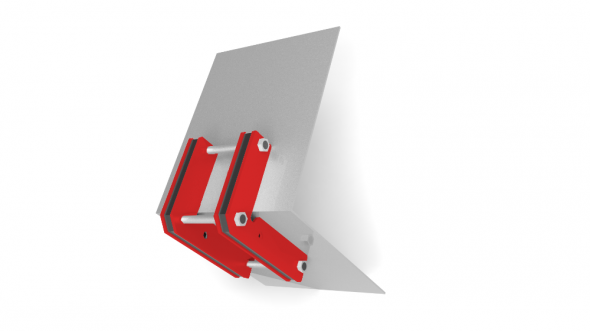

  • Comes with mounting holes for linking two units together
  • Hex hole allows breakaway leverage
Download brochure
Get a quote

Overview - Inside and Outside Welding Clamps

Inside and Outside Welding Clamps

Ideal for tack welding applications the Inside and Outside welding clamp provide a simple alternative to screw fit corner clamps and  angle clamps for position 2 pieces of steel pre-welding.  Available in 3 different sizes they are ideal for clamping at 30º, 60º and 90º angles.

Want to discuss this in more detail? Get in touch

See our range of Switchable Welding Clamps

Model Variations

Product NumberAnglesHeight (mm)Width (mm)Thickness (mm)Weight (kg)Pull Force (kg)
IOWCC30 ̊, 60 ̊, 90 ̊30 ̊, 60 ̊, 90 ̊75.552140.139
IOWCC*30 ̊, 60 ̊, 90 ̊12585180.41515
IOWCL30 ̊, 60 ̊, 90 ̊165110200.818
