Alnico Deep Pot Magnets (With Threaded Hole)
Powerful clamping forces ideal for mounting threaded components
Hello...
Would you like to visit the Eclipse Magnetics US site to view all relevant content for your location?
Ideal for mounting components with a screw or bolt

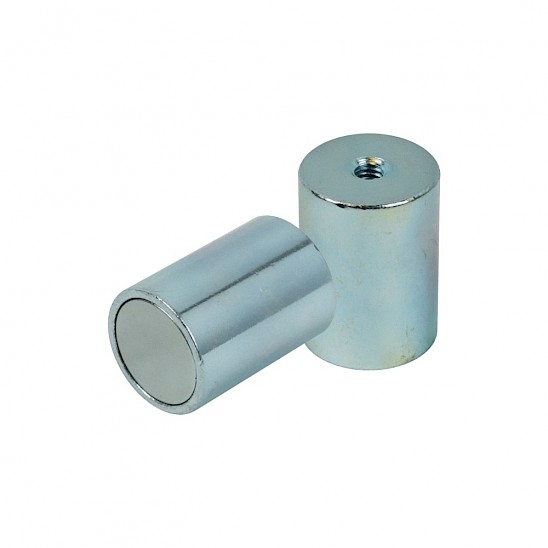

Overview - Neodymium NdFeb Deep Pot Magnet
Read more about pot magnets
Product Number | Diameter (mm) | Height (mm) | Thread size | Weight (g) | Pull force (kg) | Units per pack |
---|---|---|---|---|---|---|
E740NEO | 6 | 20 | M3 | 4 | 0.6 | 20 |
E741NEO | 8 | 20 | M3 | 7.5 | 1.2 | 20 |
E742NEO | 10 | 20 | M4 | 11 | 2.4 | 20 |
E743NEO | 13 | 20 | M4 | 20 | 6.0 | 20 |
E744NEO | 16 | 20 | M4 | 30 | 9.0 | 10 |
E745NEO | 20 | 25 | M6 | 58 | 13.5 | 5 |
E746NEO | 25 | 35 | M6 | 131 | 19.0 | 2 |
E747NEO | 32 | 40 | M8 | 243 | 34.0 | 2 |
