Ferrite (Ceramic) Shallow Pot Magnets with Hook
Ideal for mounting or attaching screw fit components
Hello...
Would you like to visit the Eclipse Magnetics US site to view all relevant content for your location?
Ideal for hanging graphics, tools and utensils

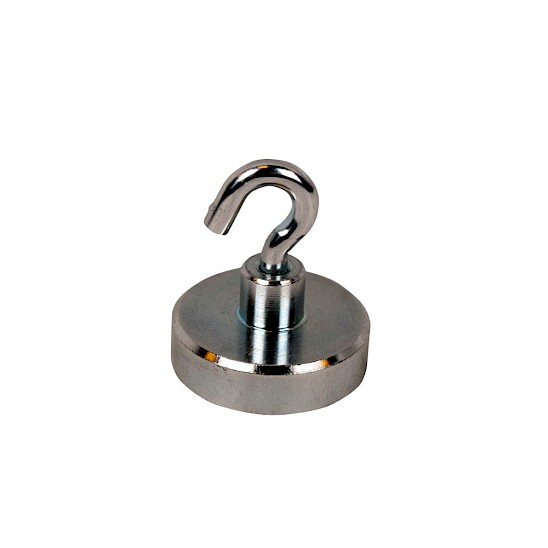

Overview - Neodymium NdFeB shallow Pot Magnets with a Hook
Read more about Pot Magnets
Product Number | Diameter (mm) | Thickness (mm) | Overall Height Inc, Hook (mm) | Thread (mm) | Weight (g) | Pull Force (kg) | Units per Pack |
---|---|---|---|---|---|---|---|
E1030/NEO | 10 | 4.5 | 15 | M3 | 4.5 | 2.5 | 20 |
E1031/NEO | 13 | 4.5 | 15 | M3 | 7.5 | 6.0 | 20 |
E1032/NEO | 16 | 4.5 | 20.5 | M4 | 13.2 | 9.5 | 20 |
E1033/NEO | 20 | 6 | 22 | M4 | 16.5 | 14.0 | 10 |
E1034/NEO | 25 | 7 | 23 | M4 | 34 | 20.0 | 10 |
E1035/NEO | 32 | 7 | 30 | M5 | 48 | 35.0 | 5 |
