Quick Magnetic Holding Clamps

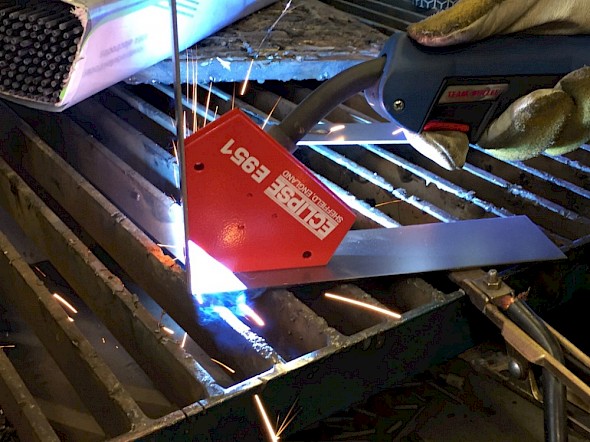

Fast application for multi-angled welding or fabrication

Fast and accurate holding of ferrous materials for welding and assembly applications
Suitable for metalworking at 30, 45, 60, 75 and 90° angles
Through-holes enable it to be fixed to multiple clamps, fixtures or jigs
Can also be used for retrieval applications
Par numbers E951 and E953

Download brochure

Get a quote

Model Variations

Model Variations

Product Number	Angles	Length (mm)	Height (mm)	Width (mm)	Weight (kg)	Pull force (kg)

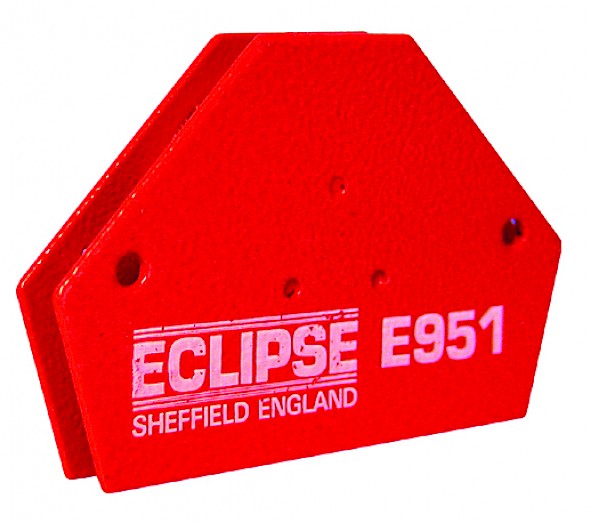

E951	30°, 45°, 60°, 75°, 90°	100.5	65.5	12	0.3	10
E953	30°, 45°, 60°, 75°, 90°	100.5	65.5	20	0.4	15
