Filtering Through Efficiency: Manual Vs Automated Filtration Systems

When it comes to filtration systems for CNC machines, there’s a common question that we are often asked: Which is better – a manual or automated filtration system? This question delves into the heart of efficiency, productivity, and cost-effectiveness in machining operations.

Filtration is crucial in maintaining the performance and longevity of CNC machines by removing contaminants from cutting fluids, ensuring optimal cutting conditions and reducing wear and tear on machine components.

In this article, we’ll delve into the intricacies of manual and automated filtration systems, comparing their advantages, limitations, and suitability for various machining environments. By the end, you’ll have a clearer understanding of which filtration approach aligns best with your machining needs.

What is a manual filter?

Manual filtration systems, as the name suggests, rely on human intervention for their operation. These systems typically involve the use of filter bags, cartridges, or other media that require periodic replacement or cleaning by machine operators or maintenance personnel.

Operation: Manual filters are straightforward in operation. They often consist of a housing or container where the filtration media is placed. The contaminated fluid passes through the media, capturing particles and impurities as it flows. When the filtration media becomes saturated or clogged, it needs to be manually replaced or cleaned to restore filtration efficiency.

Maintenance: Maintenance of manual filters involves regular inspection of the filtration media and replacement or cleaning as needed. This process can be time-consuming and labour-intensive, requiring operators to halt machining operations temporarily.

Flexibility: One advantage of manual filters is their flexibility in accommodating different types of filtration media. Operators can choose the appropriate media based on the specific contaminants present in the cutting fluid, allowing for customisation of the filtration process.

Cost: Manual filtration systems often have lower upfront costs compared to automated systems, making them a cost-effective option for small-scale machining operations or facilities with budget constraints. However, it's essential to consider the long-term costs associated with labour and downtime for maintenance activities.

Control: Manual filters provide operators with direct control over the filtration process. They can monitor the condition of the filtration media and adjust maintenance schedules accordingly to optimise performance and prolong the lifespan of the filtration system.

While manual filters offer simplicity and versatility, they require more hands-on involvement and may not be suitable for high-volume machining operations where uninterrupted production is critical.

How does a manual magnetic filter work?

Manual magnetic filters employ magnetic attraction to capture ferrous particles from cutting fluids in CNC machining operations. These filters are particularly effective in removing small metal particles that can cause damage to machine components and degrade the quality of finished parts.

Manual magnetic filters consist of a housing containing one or more magnetic rods. These magnets generate a strong magnetic field within the housing, attracting ferrous particles present in the fluid passing through.

As the contaminated cutting fluid flows through the housing, ferrous particles adhere to the surface of the magnetic rods due to the magnetic attraction. The fluid then exits the housing, leaving behind the captured contaminants, which are effectively removed from the system.

Maintenance of manual magnetic filters involves periodic inspection and cleaning of the magnetic rods to remove accumulated ferrous particles. Operators can easily access the housing and remove the magnets for cleaning, ensuring continuous filtration efficiency.

Manual magnetic filters offer a cost-effective solution for ferrous particle removal in machining operations. They have relatively low upfront costs and require minimal ongoing maintenance, making them an attractive option for small to medium-sized machine shops.

Pros and cons of manual magnetic filters

Pros

Effective Ferrous Particle Removal: Manual magnetic filters excel at capturing ferrous particles from cutting fluids, preventing them from causing damage to machine components and improving the quality of finished parts.

Low Upfront Cost: Manual magnetic filters typically have lower initial costs compared to automated filtration systems, making them a cost-effective solution for small to medium-sized businesses with budget constraints.

Simple Design: These filters have a straightforward design, making them easy to install and operate without the need for complex maintenance procedures.

Compatibility: Manual magnetic filters are compatible with various types of cutting fluids and machining applications, offering versatility in deployment based on specific operational requirements.

Cons

Manual Intervention: As the name suggests, manual magnetic filters rely on human intervention for maintenance and cleaning, which can be time-consuming and labour-intensive, particularly in facilities with high machining volumes.

Frequent Cleaning Required: In high-contamination environments, manual magnetic filters may require frequent cleaning to prevent filter saturation and maintain optimal performance, leading to increased downtime.

Maintenance Dependency: Continuous monitoring and maintenance are essential to ensure the proper functioning of manual magnetic filters. Neglecting regular cleaning and inspection can lead to decreased filtration efficiency and potential damage to machining equipment.

Types of manual filter

Manual magnetic filters come in various designs and configurations, each tailored to specific machining applications and operational requirements. Two popular types of manual magnetic filters are the Micromag and Filtramag+, each offering unique features and benefits for ferrous particle removal in CNC machining operations.

Micromag

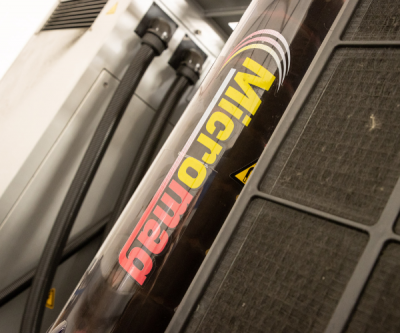

Micromag is a compact and versatile manual magnetic filter designed for efficient ferrous particle removal in machining applications.

Key features of Micromag include:

Compact Design: Micromag's small footprint makes it suitable for installation in tight spaces, such as CNC machine sumps or coolant tanks, without impeding machining operations.

High Magnetic Strength: Despite its compact size, Micromag features powerful rare-earth magnets that generate a strong magnetic field, ensuring effective capture of ferrous particles from cutting fluids.

Easy Installation and Maintenance: Micromag can be quickly installed in-line with coolant lines or integrated into existing filtration systems. Maintenance involves periodic inspection and cleaning of the magnetic rods or cartridges, which can be easily accessed for maintenance tasks.

Versatility: Micromag is compatible with a wide range of cutting fluids and machining processes, making it suitable for various machining applications, including milling, turning, and grinding.

Filtramag+

Filtramag+ is a robust manual magnetic filter designed for heavy-duty ferrous particle removal in demanding machining environments.

Key features of Filtramag+ include:

Durable Construction: Filtramag+ features a rugged housing constructed from corrosion-resistant materials, ensuring long-term reliability and durability in harsh machining conditions.

High Filtration Capacity: Equipped with multiple magnetic rods or cartridges, Filtramag+ offers high filtration capacity, capable of capturing large volumes of ferrous particles without compromising filtration efficiency.

Flexible Mounting Options: Filtramag+ can be mounted in various orientations to accommodate different machining setups and coolant flow configurations, providing flexibility in deployment based on specific operational requirements.

Efficient Contaminant Removal: With its powerful magnetic field and large filtration area, Filtramag+ effectively removes ferrous particles of various sizes from cutting fluids, contributing to improved machining performance and tool life.

Easy Maintenance: Maintenance of Filtramag+ involves regular inspection and cleaning of the magnetic rods or cartridges, which can be easily removed from the housing for cleaning purposes. This ensures uninterrupted filtration performance and prolongs the lifespan of the filtration system.

Both the Micromag and Filtramag offer reliable and efficient ferrous particle removal in manual magnetic filtration applications, catering to the diverse needs of CNC machining operations. By selecting the appropriate manual magnetic filter based on specific machining requirements, operators can enhance machining efficiency, extend tool life, and maintain the quality of finished parts.

What is an automatic filter?

Automatic filters represent a significant advancement in filtration technology, offering a hands-free approach to removing contaminants from cutting fluids in CNC machining operations.

Unlike manual filters that rely on human intervention for operation and maintenance, automatic filters are equipped with sophisticated mechanisms and controls that enable continuous, automated filtration processes.

Automated Operation: Automatic filters are designed to operate autonomously, utilising sensors, valves, and control systems to monitor and regulate filtration processes. These filters can automatically adjust filtration parameters, such as flow rate and pressure, to maintain optimal filtration efficiency without the need for manual intervention.

Continuous Filtration: One of the key features of automatic filters is their ability to provide continuous filtration of cutting fluids during machining operations. By continuously removing contaminants from the fluid stream, automatic filters help maintain consistent machining conditions, resulting in improved surface finish, dimensional accuracy, and tool life.

Self-Cleaning Mechanisms: Many automatic filters are equipped with self-cleaning mechanisms, such as backwashing or purging systems, that periodically remove accumulated contaminants from the filtration media. This self-cleaning process ensures uninterrupted filtration performance and minimises downtime associated with manual cleaning and maintenance.

Integration with CNC Systems: Automatic filters can be seamlessly integrated with CNC machine control systems, enabling real-time communication and coordination between filtration processes and machining operations. This integration ensures synchronised operation and optimal utilisation of cutting fluids, further enhancing machining efficiency and productivity.

How does an automatic magnetic filter work?

Automatic magnetic filters feature a housing containing magnetic rods or cartridges, similar to manual magnetic filters. These magnets generate a powerful magnetic field within the housing, attracting ferrous particles present in the fluid stream passing through the filter.

Unlike manual magnetic filters which rely on periodic maintenance for cleaning and replacing filtration media, automatic magnetic filters provide continuous filtration of cutting fluids during machining operations. As the contaminated fluid flows through the filter housing, ferrous particles adhere to the surface of the magnetic rods or cartridges due to the magnetic attraction, effectively removing them from the fluid stream.

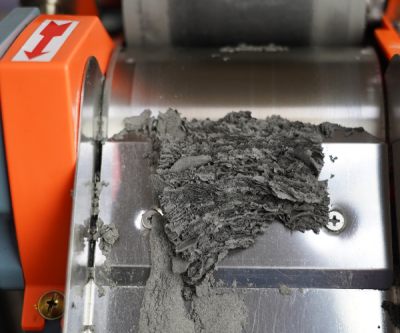

One of the key features of automatic magnetic filters is their self-cleaning mechanism, which eliminates the need for manual intervention in maintenance. These filters are equipped with automated systems that periodically remove accumulated ferrous particles from the magnetic rods or cartridges, ensuring uninterrupted filtration performance without causing downtime.

The self-cleaning mechanism of automatic magnetic filters often involves backwashing or purging of the filtration media to dislodge trapped contaminants. This process may be triggered based on preset parameters, such as differential pressure across the filter or elapsed operating time, and can be executed automatically, without operator intervention.

Some automatic magnetic filtration systems, such as the Automag Skid, feature a reclaim unit. This enables the removed ferrous materials to be recycled, reducing waste and contributing to a more sustainable machining process.

Pros and cons of automatic magnetic filters

Pros of automatic magnetic filters

Continuous Filtration: Automatic magnetic filters provide uninterrupted removal of ferrous particles from cutting fluids during machining operations, ensuring consistent machining conditions and minimising the risk of tool wear and part defects.

Hands-Free Operation: With automated mechanisms for self-cleaning and maintenance, automatic magnetic filters require minimal operator intervention, reducing labour costs and freeing up personnel for other tasks.

Improved Efficiency: The self-cleaning feature of automatic magnetic filters eliminates the need for manual cleaning and replacement of filtration media, resulting in reduced downtime and increased machining uptime.

High Filtration Capacity: Equipped with powerful magnets and high flow ratings, automatic magnetic filters offer high filtration capacity, capable of capturing a wide range of ferrous particles with precision and efficiency.

Sustainability Benefits: Some automatic magnetic filtration systems incorporate reclaim units, enabling the recycling and reuse of removed ferrous materials, reducing waste, and contributing to a more sustainable machining process.  Magnet filters do not need replacing unlike bag filters so landfill waste is reduced.  Also, by placing a magnet filter before other filters you will start to lengthen the time between changing such disposable filters reducing the amount of material sent to landfill which represents an environmental and carbon footprint benefit.

Cons of automatic magnetic filters:

Higher Initial Cost: Automatic magnetic filters typically have higher upfront costs compared to manual filters due to their advanced technology and automation features, potentially presenting a barrier to adoption for some machining operations with budget constraints.  However, with the ability to self-clean, reduce the downtime costs and to also reduce the costs of other filtration media afterwards, the units start to provide longer term cost benefits.

Complexity: The sophisticated design and automation of automatic magnetic filters may require specialised knowledge or training for installation, operation, and maintenance, adding complexity to the filtration system and potentially increasing reliance on technical support.

Potential for Mechanical Failure: As with any automated system, automatic magnetic filters are susceptible to mechanical failure or malfunction, which can disrupt filtration processes and necessitate repairs or replacement parts, leading to additional costs and downtime.  We design our units to be easily maintained and reliable to minimise this.

Energy Consumption: The continuous operation and automation of automatic magnetic filters may result in higher energy consumption compared to manual filters, particularly if the self-cleaning mechanism requires additional power or resources.

Maintenance Complexity: While automatic magnetic filters reduce the need for manual cleaning and maintenance, they may require periodic calibration, adjustment, or troubleshooting of automated systems, which can be more complex and time-consuming than manual maintenance tasks.

Types of automatic magnetic filtration system

Automatic magnetic filtration systems encompass various designs and configurations, each tailored to specific machining environments and operational requirements.

Two popular types of automatic magnetic filtration systems are the Automag Skid and Autofiltrex, both offering advanced features for efficient ferrous particle removal in CNC machining operations.

Automag Skid

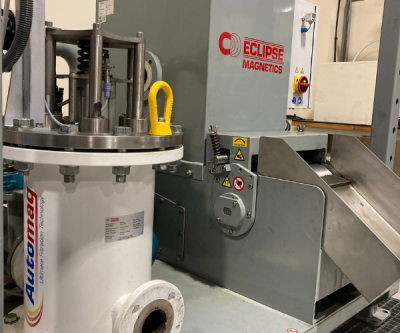

The Automag Skid is a comprehensive automatic magnetic filtration system designed for high-performance ferrous particle removal in demanding machining applications. Key features of the Automag Skid include:

Integrated Design: The Automag Skid combines magnetic filtration technology with auxiliary components such as pumps, valves, and control systems into a compact, integrated unit. This all-in-one design simplifies installation and operation, minimising footprint and streamlining maintenance procedures.

Continuous Filtration: Equipped with self-cleaning mechanisms, the Automag Skid provides continuous filtration of cutting fluids during machining operations, ensuring consistent machining conditions and prolonged tool life.

Reclaim Unit: A notable feature of the Automag Skid is its reclaim unit, which enables the efficient collection and recycling of removed ferrous materials. This closed-loop approach to ferrous material management reduces waste and contributes to a more sustainable machining process.

Autofiltrex

The Autofiltrex is an advanced automatic magnetic filtration system designed for precise and efficient ferrous particle removal in CNC machining environments. Key features of the Autofiltrex include:

Modular Design: The Autofiltrex features a modular design that allows for easy customisation and scalability to accommodate varying machining requirements. Operators can configure the system with different filtration modules and accessories to meet specific operational needs.

High Filtration Efficiency: Equipped with high-strength magnetic rods or cartridges and advanced filtration media, the Autofiltrex offers superior filtration efficiency, capable of capturing ferrous particles of various sizes with precision and reliability.

Minimal Maintenance Requirements: With its self-cleaning mechanisms and automated maintenance features, the Autofiltrex requires minimal manual intervention for upkeep. Operators can rely on the system's automated functions to ensure continuous filtration performance without the need for frequent maintenance tasks.

Both the Automag Skid and Autofiltrex exemplify the advancements in automatic magnetic filtration technology, offering efficient and reliable solutions for ferrous particle removal in CNC machining operations. By selecting the appropriate automatic magnetic filtration system based on specific machining requirements, operators can enhance machining efficiency, prolong tool life, and maintain the quality of finished parts.

Frequently asked questions

What is the most efficient filtration system?

Determining the most efficient filtration system depends on various factors, including the specific application, operational requirements, and budget constraints. Both manual and automatic filtration systems have their advantages and limitations, and the most efficient option may vary depending on the unique needs of each machining environment.

For some applications where continuous filtration and minimal operator intervention are paramount, automatic filtration systems, such as automatic magnetic filters like the Automag Skid or Autofiltrex, may be the most efficient choice. These systems offer hands-free operation, self-cleaning mechanisms, and advanced control features that optimise filtration performance and minimise downtime.

On the other hand, manual filtration systems, such as manual magnetic filters, may be more suitable for applications with lower throughput, simpler machining setups, or limited budgets. While manual systems require more hands-on maintenance and oversight, they offer flexibility, ease of installation, and lower upfront costs compared to their automated counterparts.

Ultimately, the most efficient filtration system is one that meets the specific requirements of the machining operation, maximises filtration performance, minimises operational costs, and aligns with sustainability goals. It's essential to consider factors such as filtration capacity, maintenance requirements, compatibility with cutting fluids, and long-term cost-effectiveness when selecting the most efficient filtration solution for a particular application.

How do I know what size filter I need?

Determining the appropriate size for a filtration system depends on several factors, including the type of contaminants present in the fluid, the flow rate of the system, and the desired level of filtration efficiency. Here are some steps to help you determine the right size filter for your needs:

Calculate Flow Rate: Determine the flow rate of your system, which is the volume of fluid that passes through the filter per unit of time. This information will help you select a filter that can handle the required flow rate without causing pressure drops or flow restrictions. If you are unsure, look at your pump – it will show you the maximum flow rate it can provide.

Consider Filtration Efficiency: Decide on the level of filtration efficiency you need. Higher efficiency filters can capture smaller particles but may also restrict flow more than lower efficiency filters. Consider the balance between filtration performance and system flow when selecting the filter size. The speed of flow can impact the contamination capture ability (slower flow helps but automated systems need a minimum flow rate for their cleaning processes).  The type of contamination (how magnetic it is) and the fluid type also impact capture performance.

Consult Manufacturer Guidelines: Refer to the manufacturer's guidelines and specifications for their filters. Manufacturers provide recommendations based on flow rates, contaminant levels, and other factors to help you select the right size filter for your application.

Size Up: In general, it's advisable to choose a filter slightly larger than what you think you need to account for any fluctuations in flow rates or changes in operating conditions. A slightly oversized filter can help ensure optimal performance and longevity of the filtration system.

Seek Expert Advice: If you're unsure about the appropriate filter size for your specific application, our filtration experts are on hand to offer advice. They can provide personalised recommendations based on your requirements and help you select the most suitable filter type and size for your needs.

Are automatic filters self-cleaning?

Yes, many automatic filters are equipped with self-cleaning mechanisms. These mechanisms allow the filter to continuously remove contaminants from the fluid without the need for manual intervention.

By incorporating self-cleaning mechanisms, automatic filters can provide uninterrupted filtration of fluids during machining operations, minimising downtime and reducing the need for manual maintenance. This hands-free operation enhances operational efficiency and ensures consistent machining conditions for improved productivity and quality of finished parts.

Should a magnetic filter replace my existing filter system?

No. The magnetic filter system should be placed before your existing filter – it will capture the ferrous contamination and any remaining non-ferrous contamination can be captured by the existing filter. This way you will be able to operate the existing filter for longer between changes and gain cost savings from reduced downtime, less spend on consumables, less spend of fluid replacement and will be sending less material to landfill.

Can I filter fluids other than coolants?

Yes – we already magnetically filter a huge range of fluids (liquids and gases!). Water, oils, acids, alkalis and many other fluids can all be magnetically filtered. We may need to check for compatibility between your fluid and our product offerings for suitability (e.g. we may need to change seal types for example) and we can advise accordingly what we can offer.

I’m still not sure which magnetic filter is best for me – can you help me?

Yes. We have a dedicated Filtration Sales team and also a Technical team who can provide assistance to guide you in your decision making. We can also loan filtration units to try on your system.

In summary

The comparison between manual and automated filtration systems reveals a nuanced landscape of advantages and considerations. While manual systems offer simplicity, flexibility, and lower upfront costs, automated systems provide continuous operation, advanced features, and reduced maintenance requirements.

Whether prioritising hands-on control or streamlined efficiency, selecting the right filtration system ultimately hinges on understanding the unique needs of the machining operation and balancing factors such as filtration performance, operational costs, and sustainability goals.

By carefully evaluating these factors and considering the specific requirements of the application, manufacturers can make informed decisions to optimise machining processes, prolong equipment life, and enhance overall productivity in their operations.

For expert advice on your unique requirements or for assistance in choosing the right filtration system for your machinery, give us a call on +44 (0) 114 225 0600.
